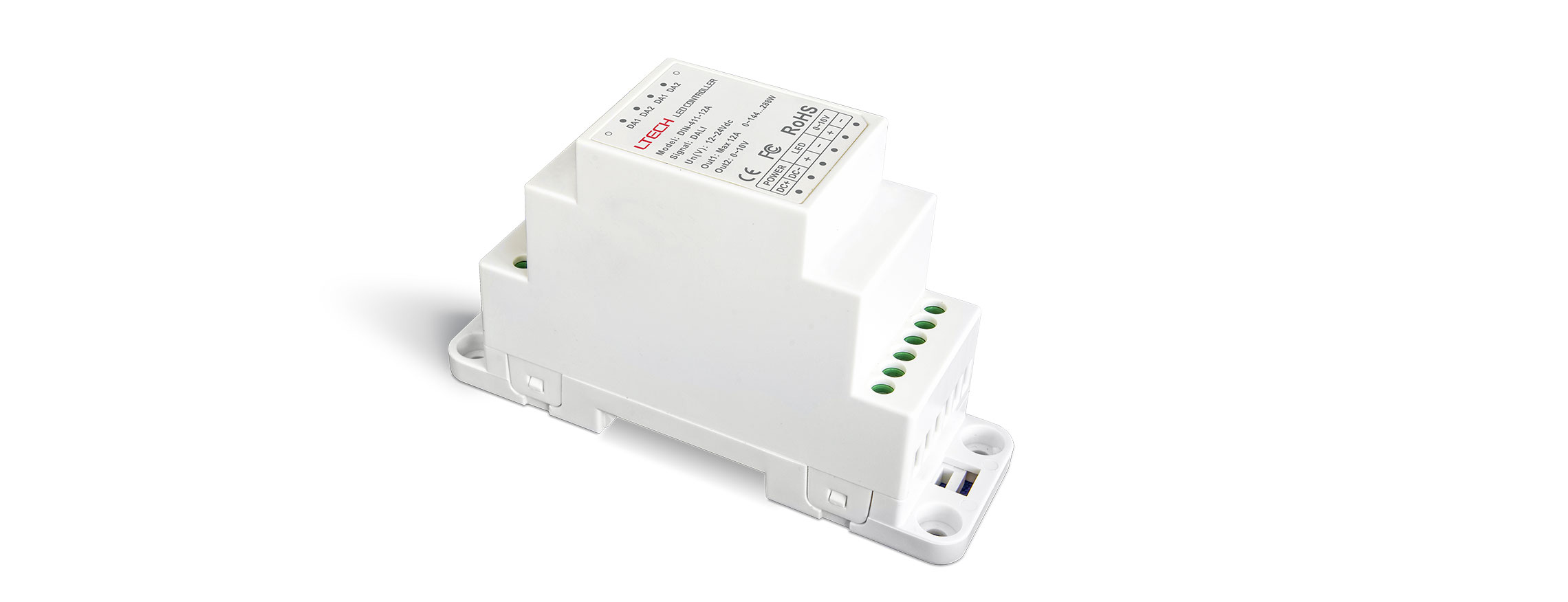

CV Dimming Driver DIN-411-12A

  • Description
  • Manual
  • Certificate
  • Video
  • Related
Product Introduction:
  • 1、Dimming interface: DALI.
  • 2、PWM digital dimming, standard DALI logarithmic dimming curve.
  • 3、Dimming range: 0~100%, LED start at 0.1% possible.
  • 4、Max. current output: 12A.
  • 5、0-10V output, DALI system compatible with 0-10V.
  • 6、Short circuit / Over load protection.
  • 7、Full protective plastic housing.
  • 8、DALI bus standard: IEC62386.
  • 9、Suitable for indoor environments.
Technical Specs:

DIN-411-12A   CV Dimming Driver(DIN rail/Screw dual-use)
Input signal DALI digital dimming signal
Input voltage DC12V～DC24V
Output 12A ×1CH + 0-10V ×1CH
Max output power 0-144W...288W
Dimming Range 0~100%, LED start at 0.1% possible
working temperature -30℃～55℃
Dimension L112×W35×H67(mm)
Package Size L114×W37×H70(mm)
Weight (G.W) 120g
