產品特性：

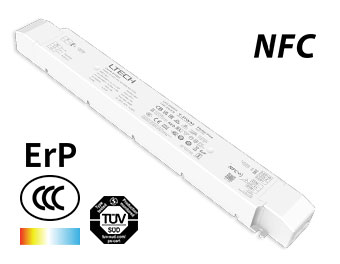

| 紅寶石電容 | |
| 調光接口: | 0-10V (1-10V, 10V PWM, RX),PUSH |
| 直流電壓: | 200-280Vdc |
| 交流電壓: | 198-264Vac |
| 輸入電壓: | 220-240Vac |
| 功率因數: | PF>0.98/230Vac (滿載) |
| 效率 (Typ): | 94% |
| 頻閃級別: | 0-100%全程調光?可視頻閃,?頻豁免考核級別 |
| 調光輸出: | T-PWM超深度調光技術 |
| 輸出電壓: | 24Vdc |
| 輸出電流: | Max. 10A |
| 輸出功率: | 0~240W |
| 調光范圍: | 0~100%, 調光深度0.01% |
| 認 證: | CCC,BIS,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,ERP,ROHS |
| 質 保: | 5年 |

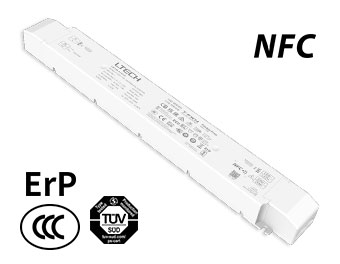

| 紅寶石電容 | |
| 調光接口: | 0-10V (1-10V, 10V PWM, RX),PUSH |
| 直流電壓: | 200-280Vdc |
| 交流電壓: | 198-264Vac |
| 輸入電壓: | 220-240Vac |
| 功率因數: | PF>0.98/230Vac (滿載) |
| 效率 (Typ): | 94% |
| 頻閃級別: | 0-100%全程調光?可視頻閃,?頻豁免考核級別 |
| 調光輸出: | T-PWM超深度調光技術 |
| 輸出電壓: | 24Vdc |
| 輸出電流: | Max. 10A |
| 輸出功率: | 0~240W |
| 調光范圍: | 0~100%, 調光深度0.01% |
| 認 證: | CCC,BIS,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,ERP,ROHS |
| 質 保: | 5年 |

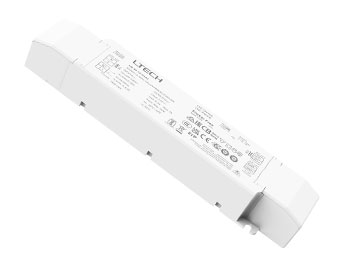

| 紅寶石電容 | |
| 調光接口: | 0-10V(1-10V/10V PWM/RX), Push DIM |
| 輸入電壓: | 220-240Vac / 200-280Vdc |
| 功率因數: | PF＞0.95/230Vac (滿載) |
| 效率 (Typ): | 87% |
| 頻閃級別: | 高頻豁免考核級別 |
| 調光輸出: | PWM |
| 工作電壓: | 12Vdc |
| 工作電流: | Max. 3A |
| 輸出功率: | 0~36W |
| 調光范圍: | 0~100%,調光深度:Max.0.1% |
| 認 證: | CCC,BIS,TUV,CE,KC,RCM,ENEC,CB,EAC,UKCA,ROHS |
| 質 保: | 5年 |
| 紅寶石電容 | |
| 調光接口: | 0-10V(1-10V/10V PWM/RX), Push DIM |
| 輸入電壓: | 220-240Vac / 200-280Vdc |
| 功率因數: | PF＞0.95/230Vac (滿載) |
| 效率 (Typ): | 88% |
| 頻閃級別: | 高頻豁免考核級別 |
| 調光輸出: | PWM |
| 工作電壓: | 24Vdc |
| 工作電流: | Max. 1.5A |
| 輸出功率: | 0~36W |
| 調光范圍: | 0~100%,調光深度:Max.0.1% |
| 認 證: | CCC,BIS,TUV,CE,KC,RCM,ENEC,CB,EAC,UKCA,ROHS |
| 質 保: | 5年 |
| 紅寶石電容 | |
| 調光接口: | 0-10V(1-10V/10V PWM/RX) Push DIM/CCT |
| 輸入電壓: | 120-277Vac |
| 功率因數: | PF>0.99/120Vac, PF>0.95/230Vac, PF>0.9/277Vac (滿載) |
| 效率 (Typ): | 93% |
| 頻閃級別: | 無可視頻閃/高頻豁免考核級別 |
| 工作電壓: | 24Vdc |
| 工作電流: | Max. 4.17A |
| 輸出功率: | 0-100W |
| 調光范圍: | 0~100%,調光深度:Max.0.1% |
| 認 證: | FCC,CE,ROHS,UL |
| 質 保: | 5年 |

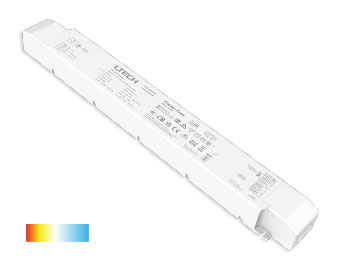

| 紅寶石電容 | |
| 調光接口: | 0-10V(1-10V/10V PWM/RX) DIM/CCT, Push DIM/CCT |
| 輸入電壓: | 220-240Vac 200-280Vdc |
| 功率因數: | PF>0.98/230Vac (滿載) |
| 效率 (Typ): | 93% |
| 頻閃級別: | 高頻豁免級別 |
| 調光輸出: | PWM |
| 輸出電壓: | 24Vdc |
| 輸出電流: | Max. 6.25A |
| 輸出功率: | 0~150W |
| 調光范圍: | 0~100%，調光深度: 0.1% |
| 認 證: | CCC,ENEC,EAC,KC,RCM,CB,CE,ROHS,BIS,ERP,UKCA |
| 質 保: | 5年 |

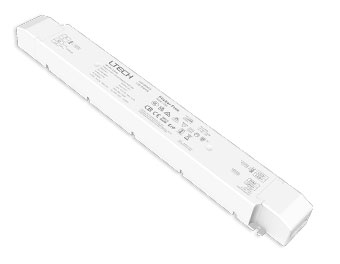

| 紅寶石電容 | |
| 調光接口: | 0-10V(1-10V/10V PWM/RX), Push DIM |
| 輸入電壓: | 220-240Vac 200-280Vdc |
| 功率因數: | PF>0.98/230Vac (滿載) |
| 效率 (Typ): | 92% |
| 頻閃級別: | 高頻豁免級別 |
| 調光輸出: | PWM |
| 輸出電壓: | 12Vdc |
| 輸出電流: | Max. 12.5A |
| 輸出功率: | 0~150W |
| 調光范圍: | 0~100%，調光深度: 0.1% |
| 認 證: | CCC,EAC,KC,RCM,CB,CE,ROHS,BIS,ERP,UKCA |
| 質 保: | 5年 |

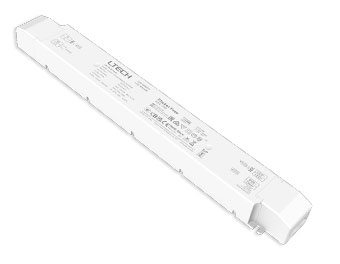

| 紅寶石電容 | |
| 調光接口: | 0-10V(1-10V/10V PWM/RX), Push DIM |
| 輸入電壓: | 220-240Vac 200-280Vdc |
| 功率因數: | PF>0.98/230Vac (滿載) |
| 效率 (Typ): | 93% |
| 頻閃級別: | 高頻豁免級別 |
| 調光輸出: | PWM |
| 輸出電壓: | 24Vdc |
| 輸出電流: | Max. 6.25A |
| 輸出功率: | 0~150W |
| 調光范圍: | 0~100%，調光深度: 0.1% |
| 認 證: | CCC,EAC,KC,RCM,CB,CE,BIS,ERP,ROHS,UKCA |
| 質 保: | 5年 |
| 紅寶石電容 | |
| 調光接口: | 0-10V(1-10V/10V PWM/RX), Push DIM |
| 輸入電壓: | 220-240Vac |
| 功率因數: | PF>0.98/230Vac (滿載) |
| 效率 (Typ): | 93% |
| 頻閃級別: | 高頻豁免考核級別 |
| 調光輸出: | PWM |
| 輸出電壓: | 24Vdc |
| 輸出電流: | Max. 4.17A |
| 輸出功率: | 0~100W |
| 調光范圍: | 0~100%，調光深度: 0.1% |
| 認 證: | CCC,CE,CB,UKCA,ROHS |
| 質 保: | 5年 |

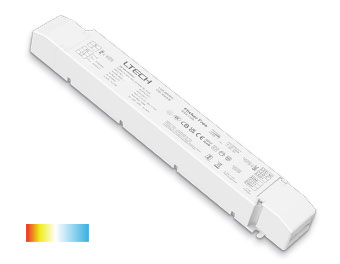

| 紅寶石電容 | |
| 調光接口: | 0-10V(1-10V/10V PWM/RX) DIM/CCT, Push DIM/CCT |
| 輸入電壓: | 220-240Vac |
| 功率因數: | PF>0.98/230Vac (滿載) |
| 效率 (Typ): | 93% |
| 頻閃級別: | 高頻豁免考核級別 |
| 調光輸出: | PWM |
| 輸出電壓: | 24Vdc |
| 輸出電流: | Max. 4.17A |
| 輸出功率: | 0~100W |
| 調光范圍: | 0~100%，調光深度: 0.1% |
| 認 證: | CCC,CE,CB,UKCA,ROHS |
| 質 保: | 5年 |
| 紅寶石電容 | |
| 調光接口: | 0-10V(1-10V/10V PWM/RX) DIM/CCT, Push DIM/CCT |
| 輸入電壓: | 220-240Vac |
| 功率因數: | PF>0.97/230Vac (滿載) |
| 效率 (Typ): | 92% |
| 頻閃級別: | 高頻豁免考核級別 |
| 調光輸出: | PWM |
| 輸出電壓: | 24Vdc |
| 輸出電流: | Max. 3.125A |
| 輸出功率: | 0~75W |
| 調光范圍: | 0~100%，調光深度: 0.1% |
| 認 證: | CCC,BIS,CE,CB,UKCA,ROHS |
| 質 保: | 5年 |

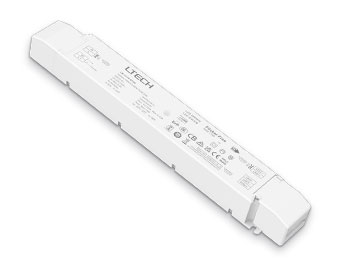

| 紅寶石電容 | |
| 調光接口: | 0-10V(1-10V/10V PWM/RX), Push DIM |
| 輸入電壓: | 220-240Vac |
| 功率因數: | PF>0.97/230Vac (滿載) |
| 效率 (Typ): | 92% |
| 頻閃級別: | 高頻豁免考核級別 |
| 調光輸出: | PWM |
| 輸出電壓: | 24Vdc |
| 輸出電流: | Max. 3.125A |
| 輸出功率: | 0~75W |
| 調光范圍: | 0~100%，調光深度: 0.1% |
| 認 證: | CCC,FCC,BIS,CE,CB,UKCA,ROHS |
| 質 保: | 5年 |
| 紅寶石電容 | |
| 調光接口: | 0-10V(1-10V/10V PWM/RX), Push DIM |
| 輸入電壓: | 220-240Vac |
| 功率因數: | PF>0.97/230Vac (滿載) |
| 效率 (Typ): | 91% |
| 頻閃級別: | 高頻豁免考核級別 |
| 調光輸出: | PWM |
| 輸出電壓: | 12Vdc |
| 輸出電流: | Max. 6.25A |
| 輸出功率: | 0~75W |
| 調光范圍: | 0~100%，調光深度: 0.1% |
| 認 證: | CCC,FCC,BIS,CE,CB,UKCA,ROHS |
| 質 保: | 5年 |
